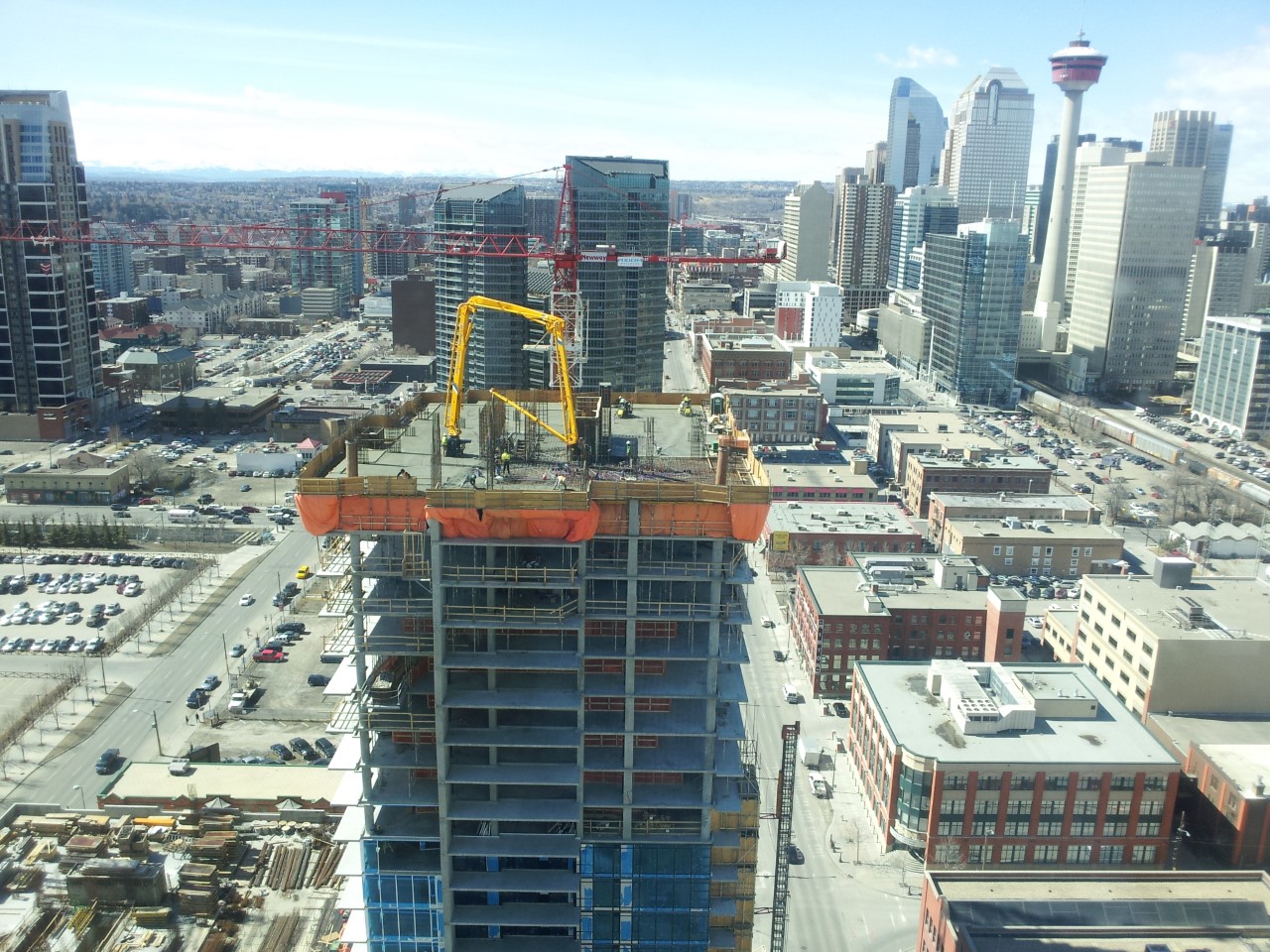

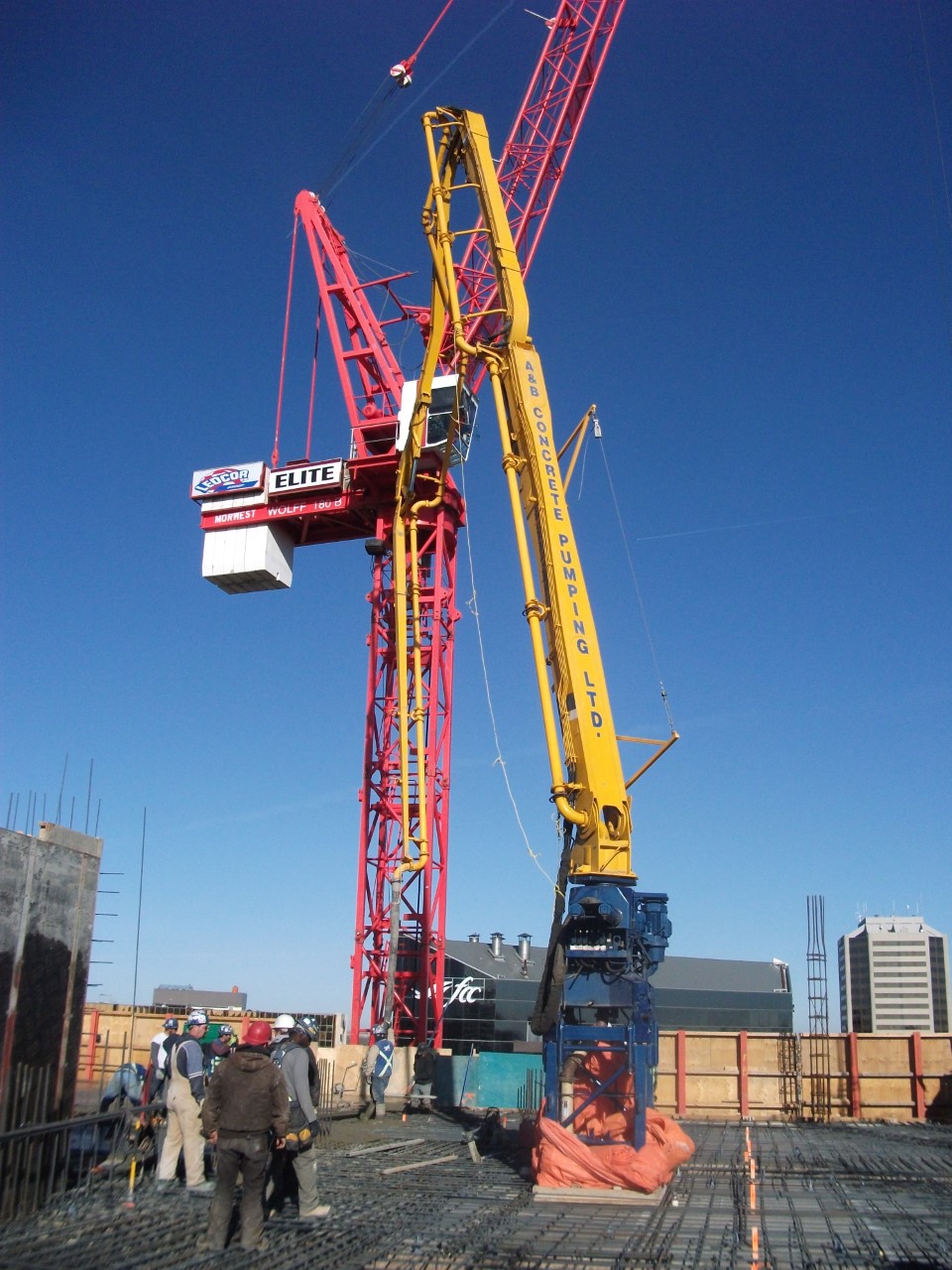

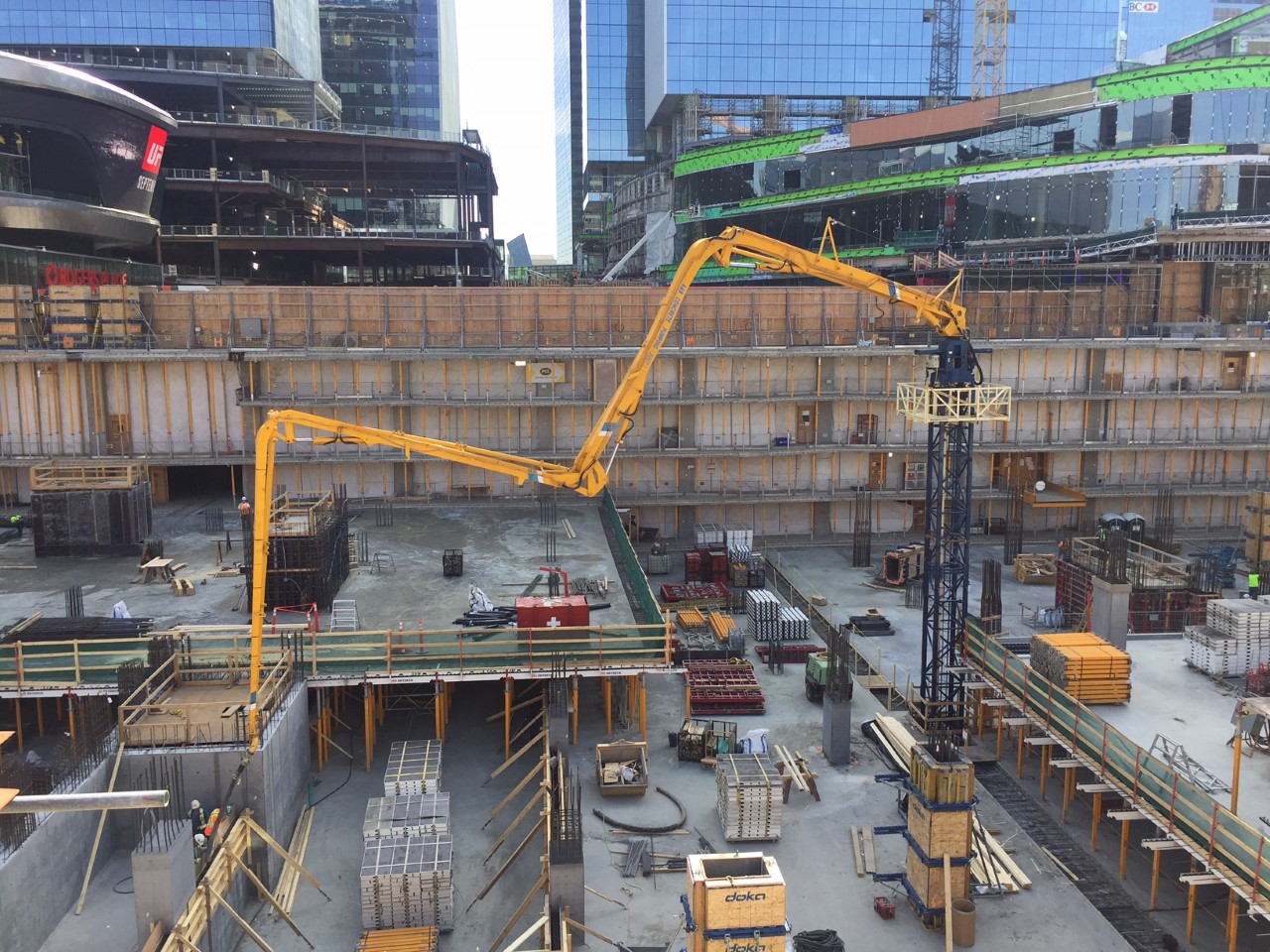

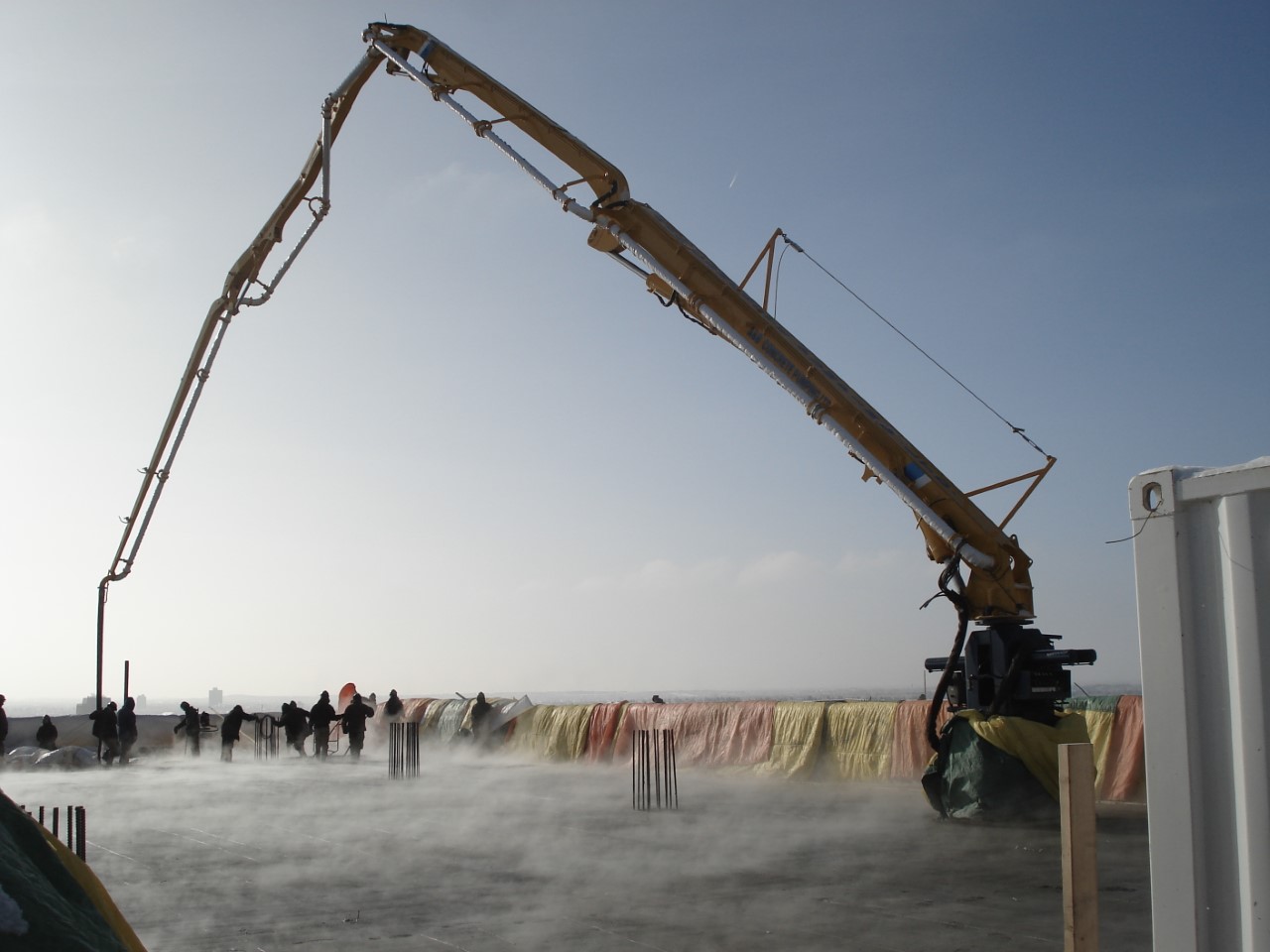

Putzmeister’s new RS 850 Tubular Column Placing System features a fully automatic hydraulic self-climbing system in an easy-to-assemble, compact design for high-rise pumping with greater flexibility.
The RS 850 Tower System uses an M-profile design that incorporates the self-climbing and delivery systems into a smaller footprint – just three-feet-three-inches (1.00m) square. That means smaller floor openings to deal with, and no carrying heavy components from one floor to the next.
| Boom Style | |
|---|---|
| Boom Style | Multi-Z |
| Height & Reach | |
|---|---|
| Vertical reach | 116’4” (33.1m |
| Horizontal reach | 108’7” (33.1m) |
| Reach depth | 84’8” (25.81m) |
| Stowed Boom Length | 31’4” (9.55m) |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 103° |
| 2nd section articulation | 180° |
| 3rd section articulation | 245° |
| 4th section articulation | 233° |
| Boom Section Length | |
|---|---|
| 1st section length | 28’6” (8.69m) |
| 2nd section length | 25’3” (7.70m) |
| 3rd section length | 27’7” (8.41m) |
| 4th section length | 27’3” (8.31m) |
| *Weights are approximate and include pump, boom, tower, driver and some fuel. Varies with options selected* | |
|---|---|
| Rotation | 365° |
| Pipeline diameter | 5” metric |
| Power | Electrical |
| Boom weight | 13,133lbs (5,957kg) |
| Pedestal weight | 4,930lbs (2,236kg |
| Total approximate weight: | 18,063lbs (8,193kg) |
| Climbing column – 1.5m | |
|---|---|
| Height | 5’0” (1.50m) |
| Width (Square) | 3’3” (1.00m) |
| Approx. Weight w/Pipe: | 2,846lbs (1,291kg) |
| Tower section – 3m | |
|---|---|
| Height | 9’10” (3.00m) |
| Width (Square) | 3’3” (1.00m) |
| Approx. Weight w/Pipe: | 3,596lbs (1,631kg) |
| Tower section – 6m | |
|---|---|
| Height | 19’7” (6.00m) |
| Width (Square) | 3’3” (1.00m) |
| Approx. Weight w/Pipe: | 6,142lbs (2,786kg) |
| Climbing column – 9m | |
|---|---|
| Height | 30’0” (9.00m) |
| Width (Square) | 3’3” (1.00m) |
| Approx. Weight w/Pipe: | 9,900lbs (4,490kg) |
| Climbing column – 10.5m | |
|---|---|
| Height | 34’5” (10.50m) |
| Width (Square) | 3’3” (1.00m) |
| Approx. Weight w/Pipe: | 10,510lbs (4,767kg) |
For a complete spec guide for the MX34-38Z Placing Boom & S850 Tower please consult the following documents.
