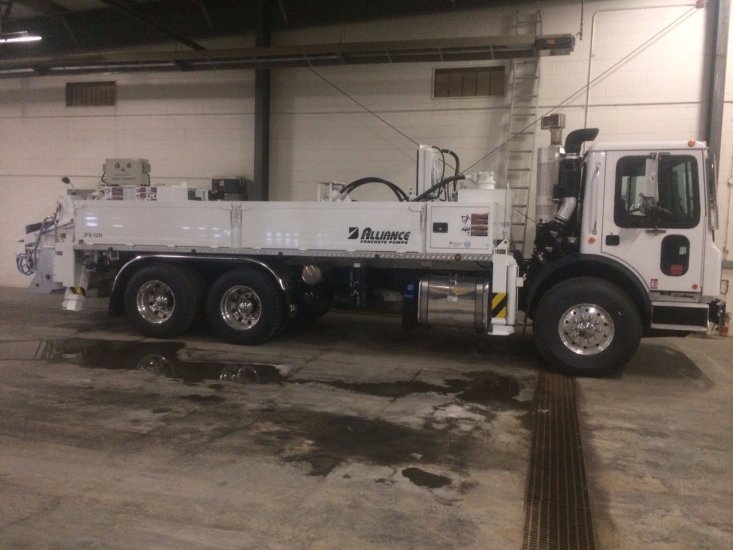

The JFS-12H is capable of so much, from medium rise and high rise construction or large warehouses and big slabs; this pump has the volume and pressure you need to accomplish it all.
Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
S-Valve Manifold
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.
Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.
Main Pump
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Roxroth.
Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.
Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls.
| Pump Specifications | |
|---|---|
| Output: Rod Side | 115 m3/h (150 yd3/h) |
| Output: Piston Side | 72 m3/h (94 yd3/h) |
| Pressure: Rod Side | 92 bar (1334 psi) |
| Pressure: Piston Side | 148 bar (2146 psi) |
| Max. Aggregate Size | 63 mm (2.5″) |
| S-tube Size | 8″ x 7″ |
| Hard Chromed Concrete Cylinder | 200 mm x 2100 mm (8″ x 83″) |
| Main Oil Pump | Rexroth hydromatic A11VO260 |
| All Hydraulic Switching System | Automatic Overrides |
| Lube System (Hopper) | Automatic |
| Hopper Capacity | Easy Clean 600L (158G) |
| Number of Strokes/Min | 29 |
| Outrigger Front & Rear | Vertical Extension |
| General Specifications | |
|---|---|
| Custom 2-Color Paint | Pump Only |
| Water Pump | Rust proof hydraulic power 20 bar (290 psi) |
| Water Tank (standard) | 600 L (158 G) |
| Wire Remote Control | 35 M (130′) |
| Auto Lube System | Hopper Only |
| Hopper Vibrator | Standard |
| Tool Box | Standard |
For a complete spec guide for the JFS-12H Truck Mounted Line Pump, please consult the following document.
