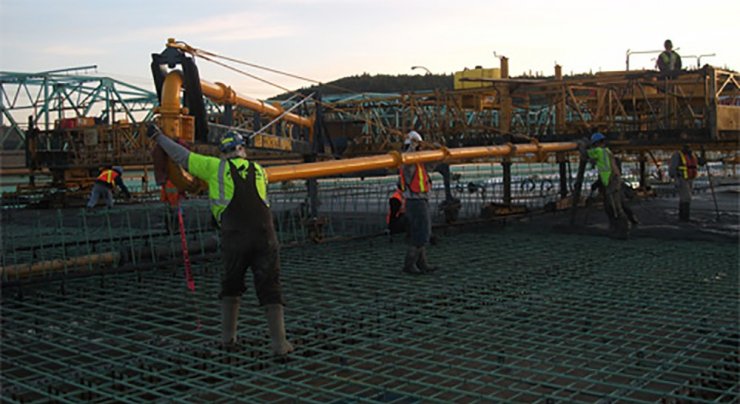

Reaches where boom pumps cannot, including roof tops, bridge decks, inside buildings etc. Stands on 4 legs, or can be mounted on wheels that run on rails. Hooks up to a line system, or to the end of a boom.
| General Specs. | |
|---|---|
| Horizontal Reach | 60′ |
| Radius | 360° |
| Set-Up Span | 11′ X 11′ |
| Boom Style | |
|---|---|
| Boom Style | Z-Fold |
| Number of sections | 4 |
| Height & Reach | |
|---|---|
| Vertical reach | 61’0″ |
| Horizontal reach | 52’6″ |
| Depth reach | 36’0″ |
| Unfolding height | 13’0″ |
| Boom Articulation | |
|---|---|
| 1st section articulation | 86° |
| 2nd section articulation | 180° |
| 3rd section articulation | 220° |
| 4th section articulation | 230° |
| Front Print | |
|---|---|
| Rear-Rear/Front-Front | 15’0″ |
| Rear-Front | 16’6″ |
| Overall diameter footprint | 20’6″ |
| Misc | |
|---|---|
| Rotational range | 370° |
| Maximum grade | 25° (46%) |
| Total weight | 24,640lbs (11,200kg) |
For a complete spec guide for the DP60 Deck Placer, please consult the following document.
