Attaining 180 ft heights, this impressive unit features a 5-section RZ boom configuration made of high quality, fine-grained steel in a box-type design for enhanced stability.
| Boom Style | |
|---|---|
| Boom Style | RZ |
| Number of sections | 5 |
| Height & Reach | |
|---|---|
| Vertical reach | 181′ 1″ |
| Horizontal reach | 168′ 0″ |
| Reach from front of truck | 158′ 9″ (48.4m) |
| Unfolding height | 37′ 1″ (14.65m) |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 180° |
| 2nd section articulation | 180° |
| 3rd section articulation | 180° |
| 4th section articulation | 210° |
| 5th section articulation | 270° |
| Boom Section Length | |
| 1st section length | 37′ 1″ |
| 2nd section length | 32′ 5″ |
| 3rd section length | 32′ 2″ |
| 4th section length | 34′ 1″ |
| 5th section length | 32′ 2″ |
| Outriggers | |
| Outrigger spread: L-R – front swing out & telescope | 32′ 4″ |
| Outrigger spread: L-R – rear swing out | 37′ 1″ |
| *Weights are approximate and include pump, boom, truck, driver and some fuel. Varies with options selected* | |
|---|---|
| Length | 49′ 3″ (15.0m) |
| Width | 8′ 2″ (2.50m) |
| Height | 13′ 0″ (3.96m) |
| Wheelbase | TBA |
| Front axle weight | 50,500 lbs (22,900kg) |
| Rear axle weight | 59,500 lbs (27,000kg) |
| Approx. total weight | 110,000 lbs (49,895kg) |

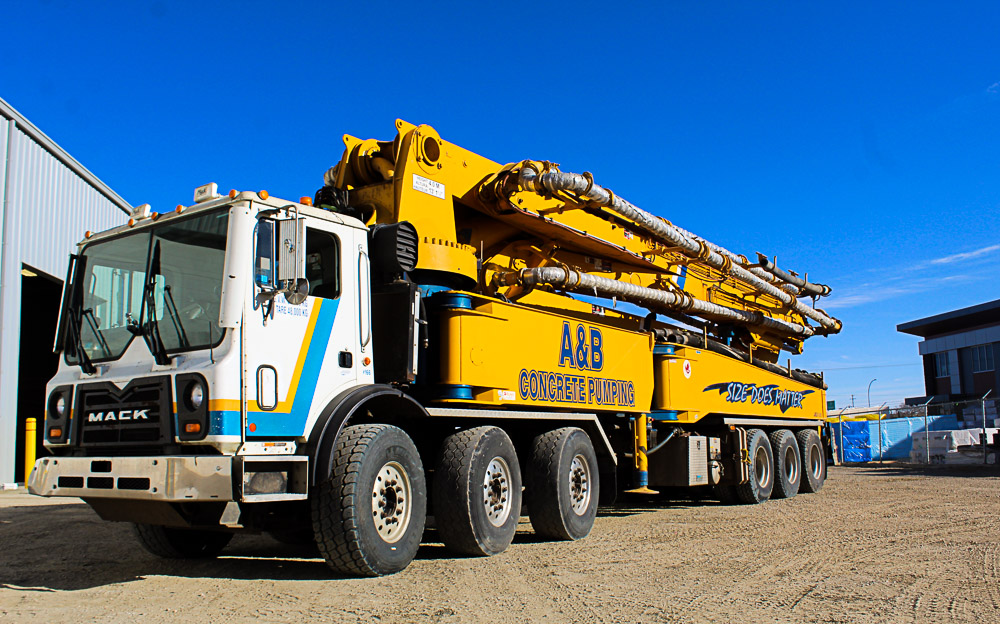

Please note that the following images below are for illustrative purposes only.
For a complete spec guide for the 55 meter RZ boom pump, please consult the following document.
