The versatile configuration of the boom is ideal for jobs that require a little ingenuity. The low unfolding height is good for warehouses or underneath bridges.
| Boom Style | |
|---|---|
| Boom Style | Z-Fold |
| Number of sections | 5 |
| Height & Reach | |
|---|---|
| Vertical reach | 136′ 6″ (41.6m) |
| Horizontal reach | 122′ 5″ (37.3m) |
| Reach from front of truck | 113′ 2″ (34.5m) |
| Reach depth | 101′ 8″ (31.0m) |
| Unfolding height | 28′ 3″ (8.6m) |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 90° |
| 2nd section articulation | 180° |
| 3rd section articulation | 180° |
| 4th section articulation | 246° |
| 5th section articulation | 235° |
| Boom Section Length | |
|---|---|
| 1st section length | 24′ 11″ (7.6m) |
| 2nd section length | 21′ 0″ (6.4m) |
| 3rd section length | 23′ 7″ (7.2m) |
| 4th section length | 26′ 7″ (8.1m) |
| 5th section length | 27′ 3″ (8.35m) |
| Outriggers | |
|---|---|

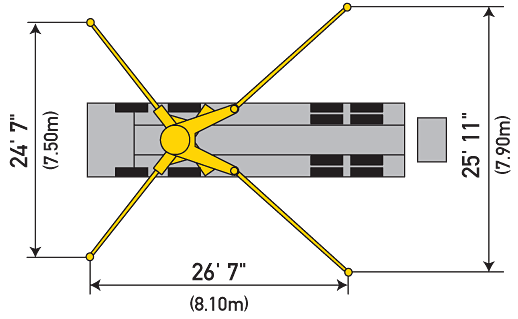

| Outrigger spread: L-R-front pull out & hydraulically extend down | 24′ 7″ (7.5m) |
| Outrigger spread: L-R-rear hydraulically extend down | 25′ 11″ (7.9m) |
| One-Sided Support (OSS) Outriggers | |
|---|---|
| Operational area | 120° |
| Outrigger spread: L-R-front hydraulically extend out & down | 15′ 9″ (4.8m) |
| Outrigger spread: L-R-rear hydraulically swing out & extend down | 20′ 4″ (6.2m) |
| *Weights are approximate and include pump, boom, truck, driver and some fuel. Varies with options selected* | |
|---|---|

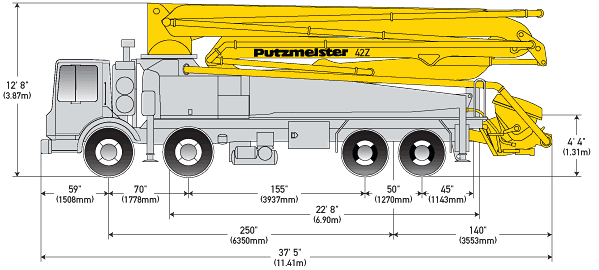

| Length | 37′ 5″ (11.41m) |
| Width | 8′ 2″ (2.50m) |
| Height | 12′ 8″ (3.87m) |
| Wheelbase | 250″ (6,350mm) |
| Front axle weight | 29,991 lbs (13,604kg) |
| Rear axle weight | 36,274 lbs (16,454kg) |
| Approx total weight | 66,265 lbs (30,058kg) |

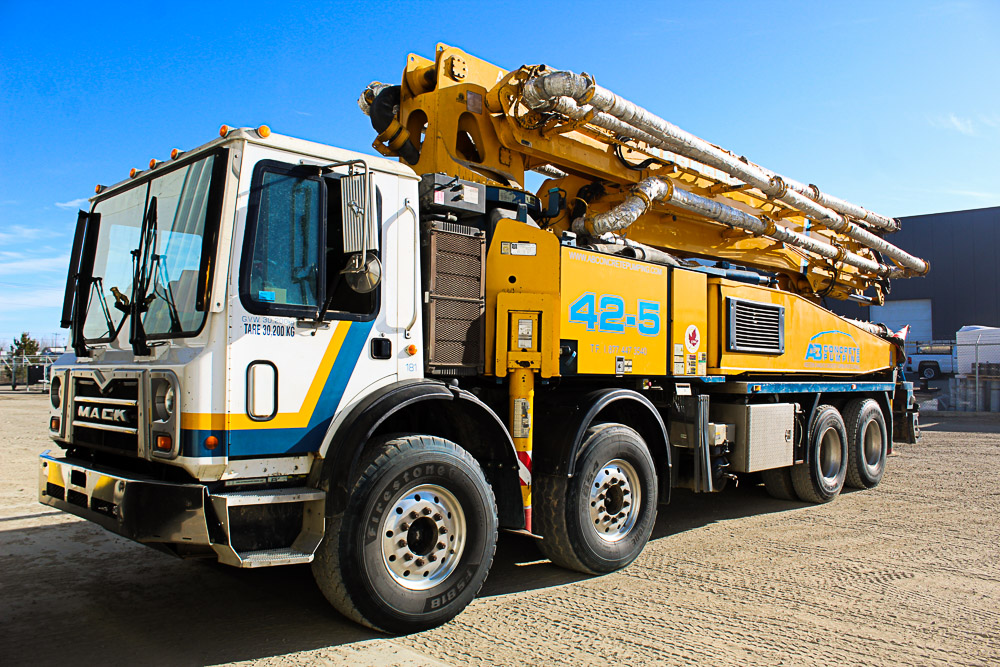

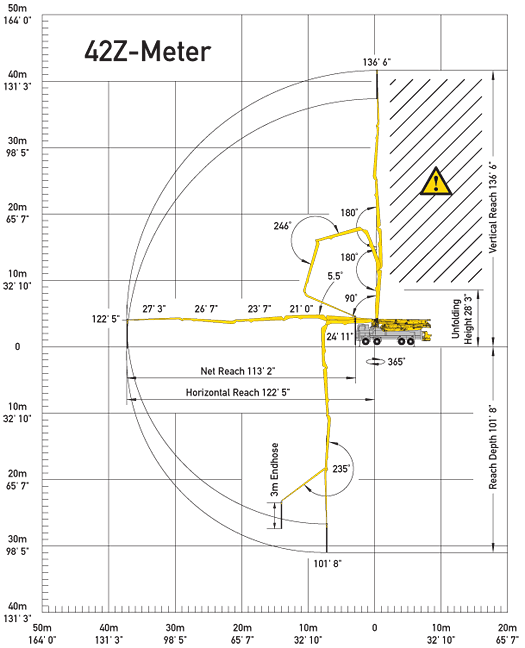

Please note that the following images below are for illustrative purposes only.
