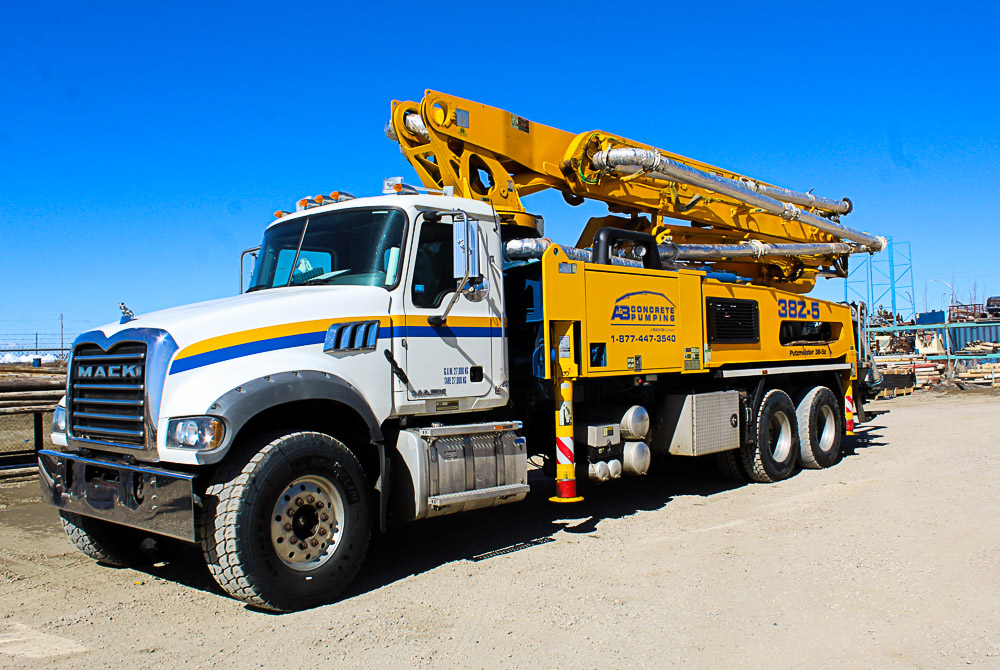

This pump features a completely brand new design for its five-section boom arm and pedestal for increased maneuverability, a reduced boom unfolding height, reduced overall weight, and a more user-friendly design.
| Boom Style | |
|---|---|
| Boom Style | Z-Fold |
| Number of sections | 5 |

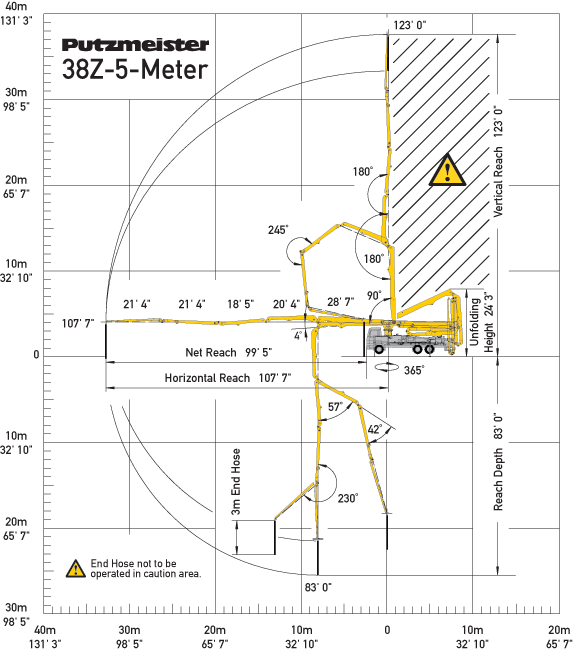

| Height & Reach | |
|---|---|
| Vertical reach | 123′ 0″ (37.5m) |
| Horizontal reach | 107′ 7″ (32.8m) |
| Reach from front of truck | 99′ 5″ (30.3m) |
| Reach depth | 83′ 0″ (25.3m) |
| Unfolding height | 24′ 3″ (7.4m) |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 90° |
| 2nd section articulation | 180° |
| 3rd section articulation | 180° |
| 4th section articulation | 245° |
| 5th section articulation | 230° |
| Boom Section Length | |
|---|---|
| 1st section length | 28′ 7″ (8.7m) |
| 2nd section length | 20′ 4″ (6.2m) |
| 3rd section length | 18′ 5″ (5.6m) |
| 4th section length | 21′ 4″ (6.5m) |
| 5th section length | 21′ 4″ (6.5m) |
| Outriggers | |
|---|---|
| Outrigger spread: L-R-front pull out & hydraulically extend down | 20′ 8″ (6.3m) |
| Outrigger spread: L-R-rear hydraulically extend down | 23′ 11″ (7.3m) |

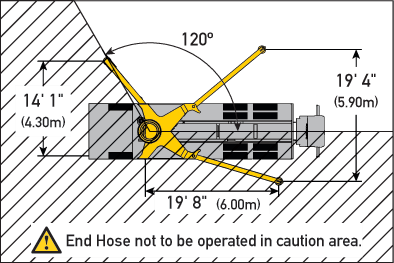

| One-Sided Support (OSS) Outriggers | |
|---|---|
| Operational Area | 120° |
| Outrigger spread: L-R-front hydraulically extend out & down | 14′ 1″ (4.3m) |
| Outrigger spread: L-R-rear hydraulically swing out & extend down | 19′ 4″ (5.9m) |
| *Weights are approximate and include pump, boom, truck, driver and some fuel. Varies with options selected* | |
|---|---|

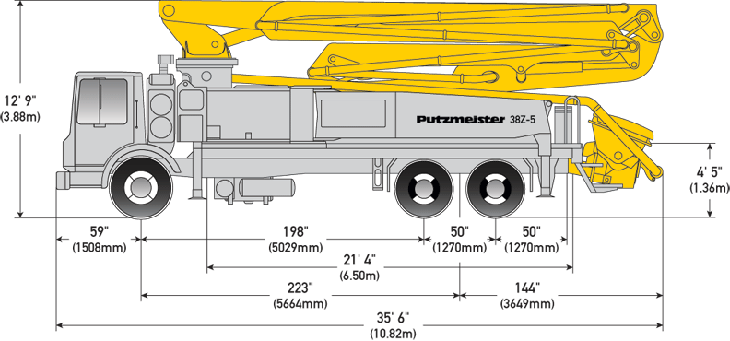

| Length | 35′ 6″ (10.82m) |
| Width | 8′ 2″ (2.50m) |
| Height | 12′ 9″ (3.88m) |
| Wheelbase | 223″ (5,664mm) |
| Front axle weight | 18,620 lbs (8,446kg) |
| Rear axle weight | 35,980 lbs (16,320kg) |
| Approx total weight | 54,600 lbs (24,766kg) |
Please note that the following images below are for illustrative purposes only.
For a complete spec guide for the 38-5 meter Z boom pump, please consult the following document.
