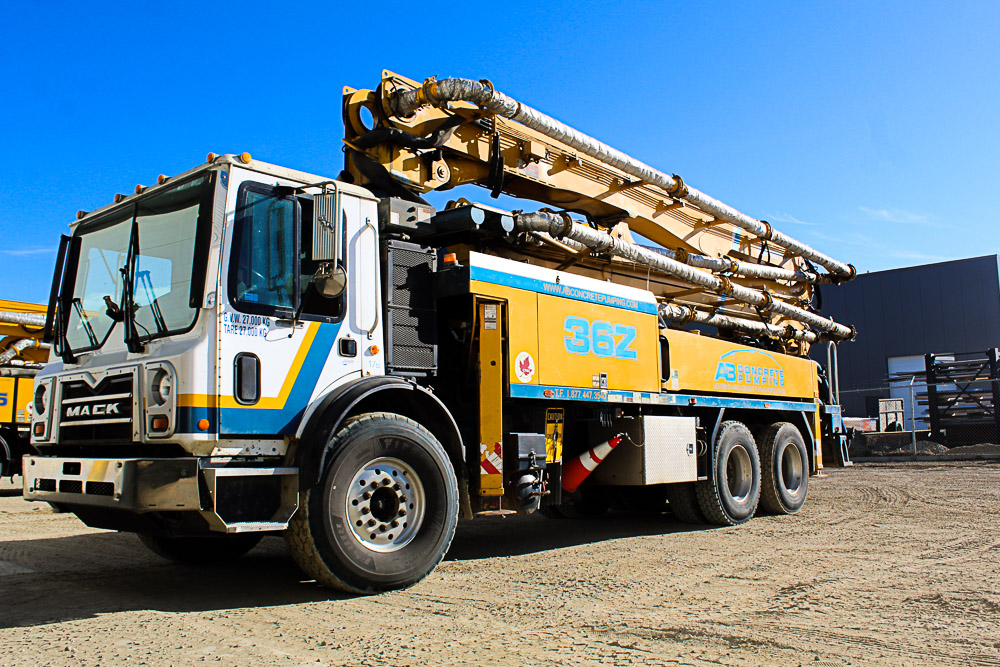

The 36 Meter is one of our most popular models. The powerful pumping performance with a small footprint makes it perfect for restrictive job sites.
| Boom Style | |
|---|---|
| Boom Style | Z-Fold |
| Number of sections | 4 |

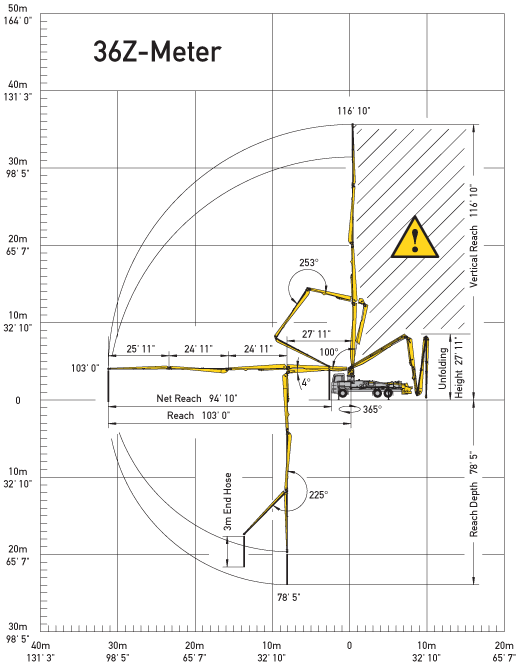

| Height & Reach | |
|---|---|
| Vertical reach | 116′ 10″ (35.60m) |
| Horizontal reach | 103′ 0″ (31.40m) |
| Reach from front of truck | 94′ 10″ (28.90m) |
| Reach depth | 78′ 5″ (23.90m) |
| Unfolding height | 27′ 11″ (8.50m) |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 104° |
| 2nd section articulation | 180° |
| 3rd section articulation | 253° |
| 4th section articulation | 225° |
| Boom Section Length | |
|---|---|
| 1st section length | 27′ 11″ (8.50m) |
| 2nd section length | 24′ 11″ (7.60m) |
| 3rd section length | 24′ 11″ (7.60m) |
| 4th section length | 25′ 11″ (7.90m) |
| Outriggers | |
|---|---|
| Outrigger spread: L-R-front pull out & hydraulically extend down | 18′ 1″ |
| Outrigger spread: L-R-rear hydraulically extend down | 23′ 0″ |

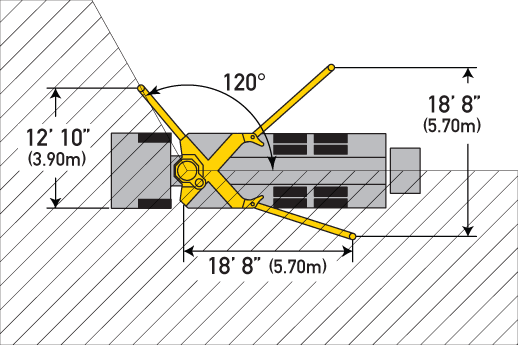

| One-Sided Support (OSS) Outriggers | |
|---|---|
| Operational area | 120° |
| Outrigger spread: L-R-front hydraulically extend out down | 12′ 10″ |
| Outrigger spread: L-R-rear hydraulically swing out & extend down | 19′ 0″ |
| *Weights are approximate and include pump, boom, truck, driver and some fuel. Varies with options selected* | |
|---|---|

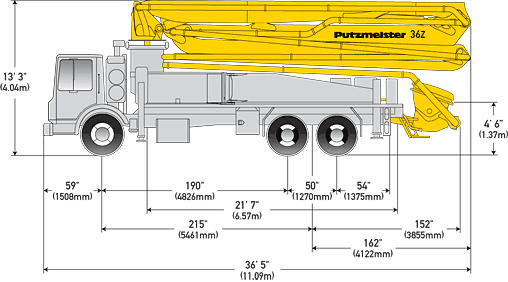

| Length | 36′ 5″ (11.09m) |
| Width | 8′ 2″ (2.50m) |
| Height | 12’9” (3.90m) |
| Wheelbase | 223” (5,664mm) |
| Front axle weight | 18,164 lbs (8,239kg) |
| Rear axle weight | 33,966 lbs (15,407kg) |
| Approx total weight | 52,130 lbs (23,646kg) |
Please note that following images below are for illustrative purposes only.
