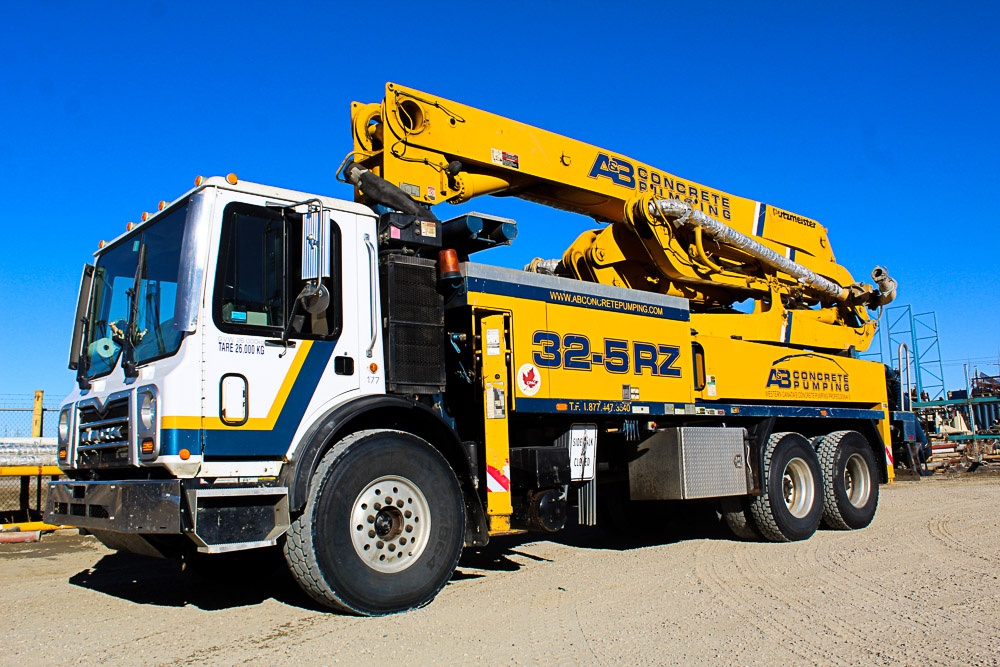

This pump has the same reach and outrigger span as our traditional 32-5m pump, however it only needs 19 feet of clearance to unfold.
| Boom Style | |
|---|---|
| Boom Style | Z-Fold |
| Number of sections | 5 |
| Height & Reach | |
|---|---|
| Vertical reach | 100′ 1″ |
| Horizontal reach | 87′ 3″ |
| Reach from front of truck | 79′ 9″ |
| Reach depth | 66′ 11″ |
| Unfolding height | 18′ 8″ |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 95° |
| 2nd section articulation | 180° |
| 3rd section articulation | 250° |
| 4th section articulation | 246° |
| 5th section articulation | 251° |
| Boom Section Length | |
|---|---|
| 1st section length | 24′ 7″ |
| 2nd section length | 16′ 9″ |
| 3rd section length | 16′ 5″ |
| 4th section length | 15′ 9″ |
| 5th section length | 13′ 9″ |
| Outriggers | |
|---|---|
| Outrigger spread: L-R-front pull out & hydraulically extend down | 20′ 8″ |
| Outrigger spread: L-R-rear hydraulically extend down | 20′ 8″ |
| One-Sided Support (OSS) Outriggers | |
|---|---|
| Operational area | 120° |
| Outrigger spread: L-R-front hydraulically extend out down | 15′ 1″ |
| Outrigger spread: L-R-rear hydraulically swing out & extend down | 16′ 1″ |
| *Weights are approximate and include pump, boom, truck, driver and some fuel. Varies with options selected* | |
|---|---|
| Length | 35′ 0″ (10.67m) |
| Width | 8′ 2″ (2.50m) |
| Height | 12′ 11″ (3.93m) |
| Wheelbase | 215″ (5,461mm) |
| Front axle weight | 19,600 lbs (8,900kg) |
| Rear axle weight | 37,800 lbs (17,100kg) |
| Approx total weight | 57,400 lbs (26,000kg) |
Please note that following images below are for illustrative purposes only.
For a complete spec guide for the 32-5 meter RZ boom pump, please consult the following document.
